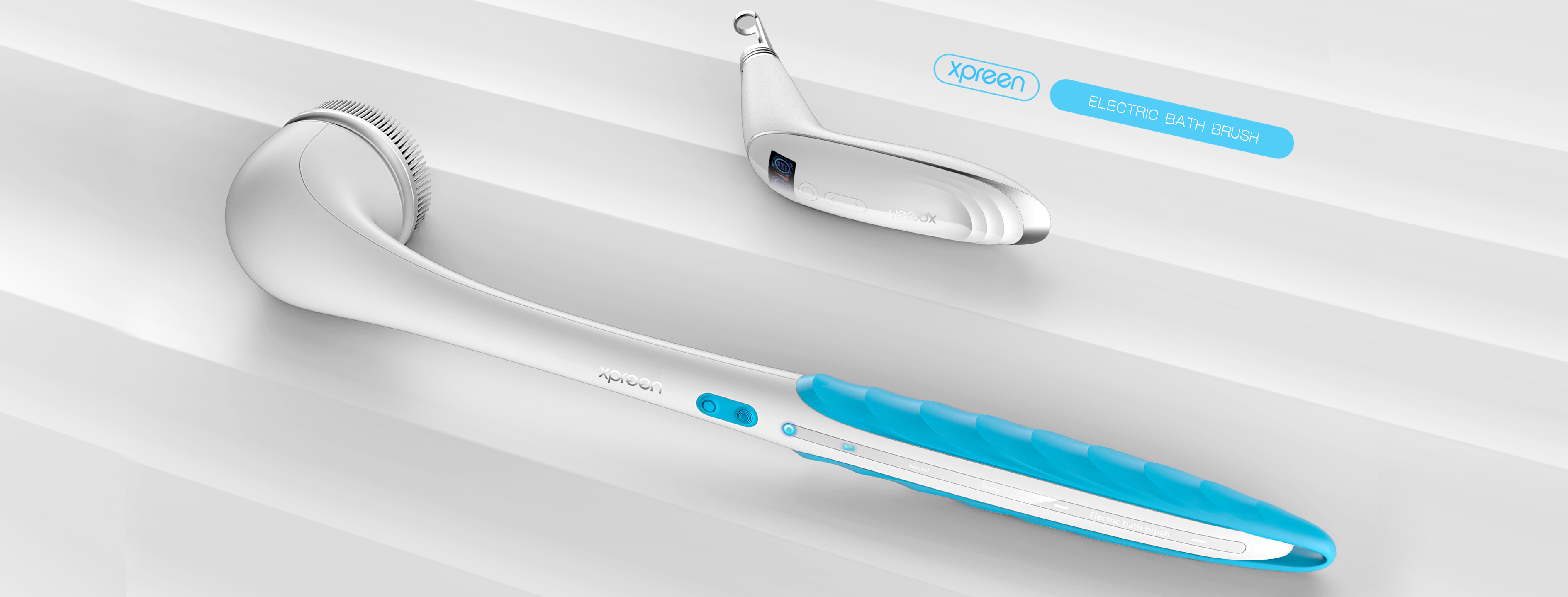

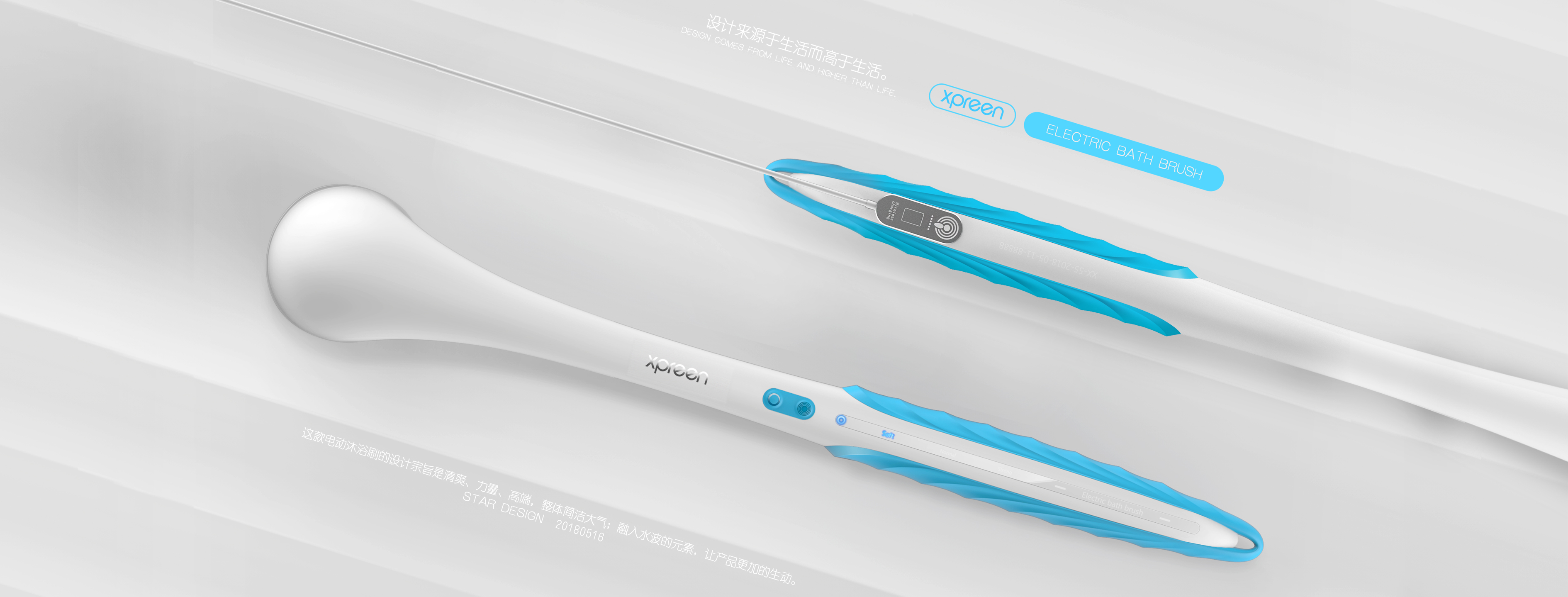

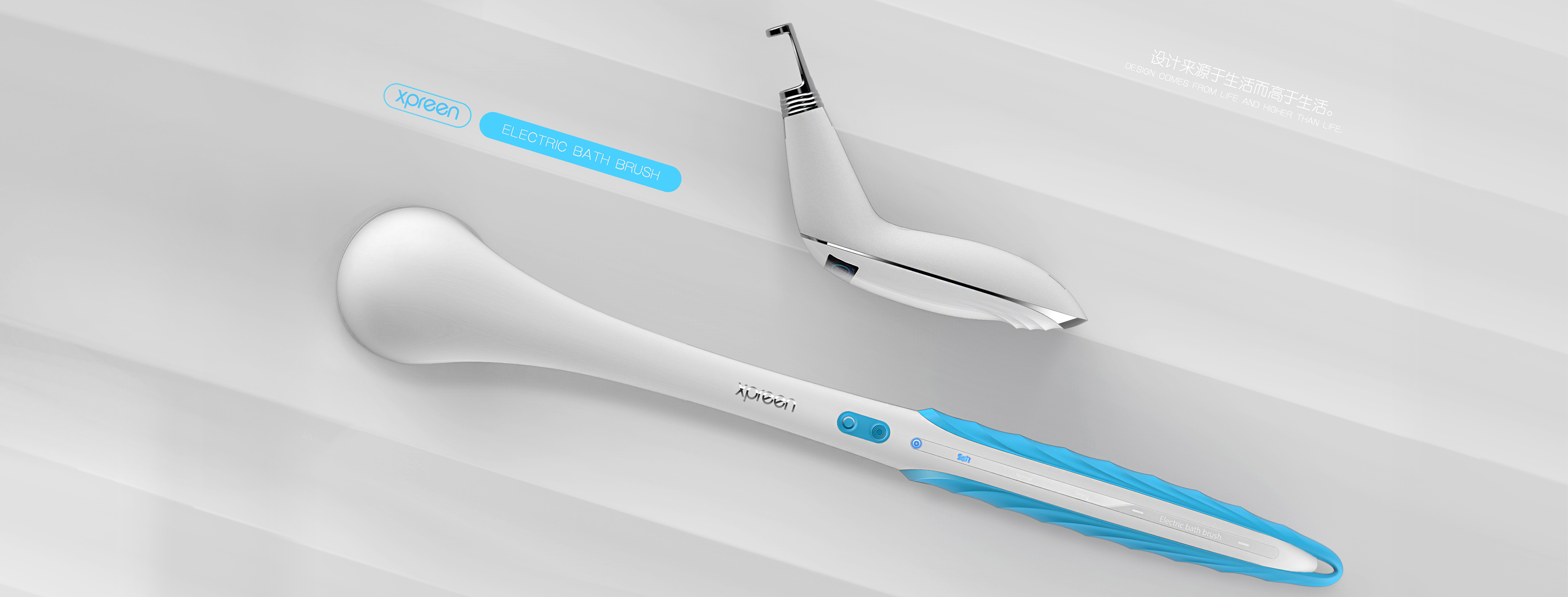

ELECTRIC BATH BRUSH

电动沐浴刷,由刷头、手柄、电池盖组成,有马达振荡、360°快、中、慢旋转毛刷和上下推动毛刷及可更换胶粒刷头等功能,达到不求人、省力、便捷洗澡的目的。本实用新型设计合理,结构简单,多功能集于一体,不但能帮人清洁背部,而且马达的振荡和按摩功能可消除人体的疲劳,从而可享受到舒畅的沐浴乐趣。

PRODUCT

【 权利要求 】 由刷头、手柄、电池盖组成,其特征是刷头上的旋转毛刷⑵和上下推动毛刷⑶分别与转动座⒀连接,并装在刷头座⑴上,刷头座⑴与刷头座底座⑷配合,刷头与手柄⑹ 上的接驳座⑸连接,手柄⑹由开合两面壳组成,手柄⑹内装有马达⑺,马达⑺与转动座⒀由转动线⑿连接,在手柄⑹ 的面壳上有开关⒁,开关⒁与马达⑺连接,手柄⑹下端内装有两节1.5V干电池⑼,干电池⑼与开关⒁连接,电池盖⑾内装有弹簧五金件座⑽,电池盖⑾与干电池⑼配合,电池盖⑾上装有挂绳⒂。
【Claim】It consists of brush head, handle and battery cover. It is characterized in that the rotating brush (2) and the up-down pushing brush (3) on the brush head are respectively connected with the rotating seat (13) and installed on the brush head seat (1). The brush head seat (1) is matched with the brush head seat base (4). The brush head is connected with the connecting seat (5) on the handle (6). The handle (6) consists of an opening and closing two-sided shell. The handle (6) is internally provided with a motor (7). The motor (7) is connected with the rotating seat (13) by a rotating line (12), and a switch (14) is arranged on the surface shell of the handle. The switch (14) is connected with the motor (7). The lower end of the handle (6) is equipped with two 1.5V dry batteries (9). The dry batteries (9) are connected with the switch (14). The battery cover (11) is equipped with a spring hardware seat (10). The battery cover (11) is matched with the dry batteries (9), and the battery cover (11) is equipped with a hanging rope (15).
